21/06/2010

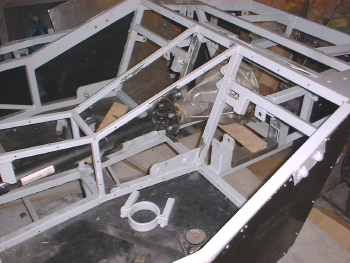

Repositioning Differential
After raising the rear suspension pick-up points, the differential is now too low.
This was causing the driveshafts to foul the lower wishbone.

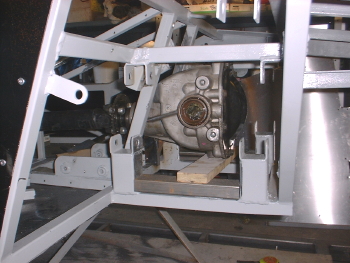

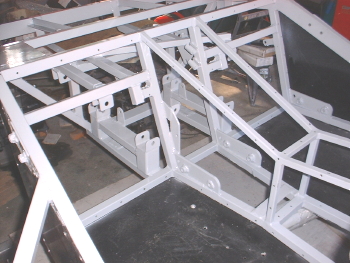

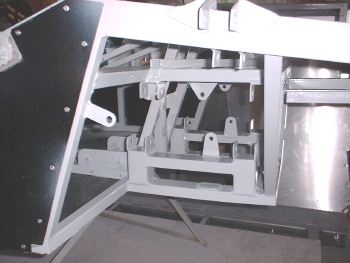

All differential mounts have been cut off and (6) new mounting points are being fitted to raise the differential 90mm.

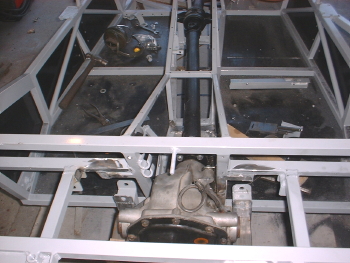

The propshaft line is now higher which requires the prop catchers to be raised.
The electric reverse would also have to be higher (reverse brackets have also been removed).
22/06/2010

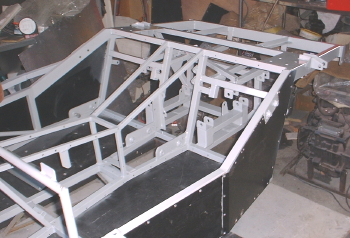

Welded and Re-painted
